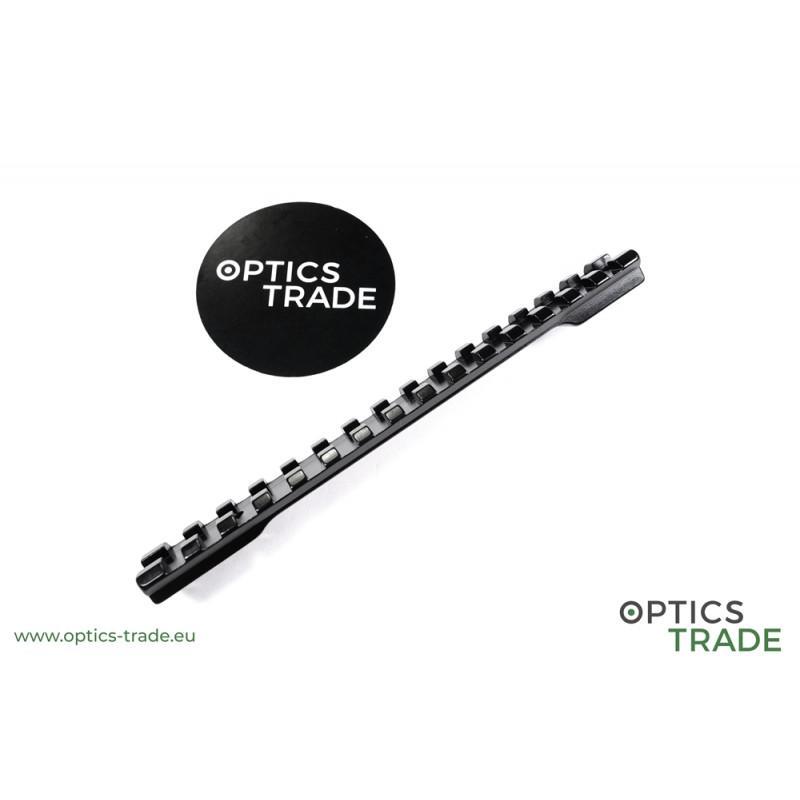

Rusan Picatinny Rail, Sauer 100/101
Rusan Picatinny Rail, Sauer 100/101
Rusan Picatinny Rail, Sauer 100/101
Rusan Picatinny Rail, Sauer 100/101
Rusan Picatinny Rail, Sauer 100/101
Rusan Picatinny Rail, Sauer 100/101
Zelo gledano

Rusan Picatinny Rail, Sauer 100/101 Detajli


Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.

Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver’s slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.

Rusan, a company from Croatia, is one of the manufacturers of Picatinny rails. They make mounts exclusively from steel and provide buyers with a wide selection of Picatinny rails for various rifles. They are made from high quality deep blue finish steel. Picatinny Rails include screws with appropriate thread for the corresponding rifle. Rusan covers 10 years of warranty for all its products.

About the rifle

Sauer & Sohn, frequently referred to as Sauer, is Germany’s oldest firearms manufacturer and the second oldest in the world, founded in 1751. Even though they have been around for nearly three hundred years, they remain innovative. One of their most known firearms is Sauer 38H, an advanced semiautomatic pistol that was produced in great numbers – it featured a cocking/decocking lever.

Sauer 101 comes with slogan “old school, new rules” which greatly describes the rifle. The bolt is designed traditionally while the barrel is attached to the receiver in a completely new, modern way. Sauer is known for smoothness of its actions and Sauer 101 is no exception. There are two holes on each of the two mounting surfaces. Plenty of models are available: Select, Artemis, Forest, Forest XT, Classic, Classic XT, Scandic, Alaska and GTI.
Here you can see which rifle is chambered for which caliber:

Select, Classic, Classic XT, Alaska, GTI: .22-250 Rem., .243 Win., 6.5×55 SE, .270 Win., 7×64, .308 Win., .30-06 Sprg., 8×57 IS, 9.3×62, 7 mm Rem. Mag., .300 Win. Mag., .338 Win. Mag.

Artemis, Scandic, Forest: .243 Win., .270 Win., .308 Win., 7×64, .30-06 Sprg., 8×57 IS, 9.3×62

Forest XT: .308 Win., .30-06 Sprg., 8×57 IS, 9.3×62

There are four holes drilled and tapped on the receiver for mounting purposes – 2 on each mounting surface.

Rifles Remington 700, 78 LA (long-action), Mauser M96, Mauser M97, Sauer 100, Sauer 101, Bergara B14 (LA), Haenel Jäger 10 and Roessler Titan 16 have actions of the same dimensions, which is why they share the same mounts.

A: 21.9 mm
B: 114 mm
C: 15.24 mm
BHU: 2.5 mm
Fi: 6-48
R1: R17
R2: R51

Mounting instructions

Remove all the stains (grease, oil etc.) from the rifle’s receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.


The product has a warranty period of 10 years.

Rusan Picatinny Rail, Sauer 100/101 specifikacije

Proizvajalec Rusan
Serija montaž Rusan Picatinny Bases
Poreklo Hrvaška
V proizvodnji od Ne
Garancija 10 let
SKU 010-25
Dolžina 164mm
Material Jeklo
Barva Anodizirana črna
BH višina  8 mm
BH višina. 8mm
Nagib montaže  0 MOA
Tip letve Picatinny
Tip daljnogleda  Picatinny Rail
21.9 mm
113.9 mm
15.24 mm
