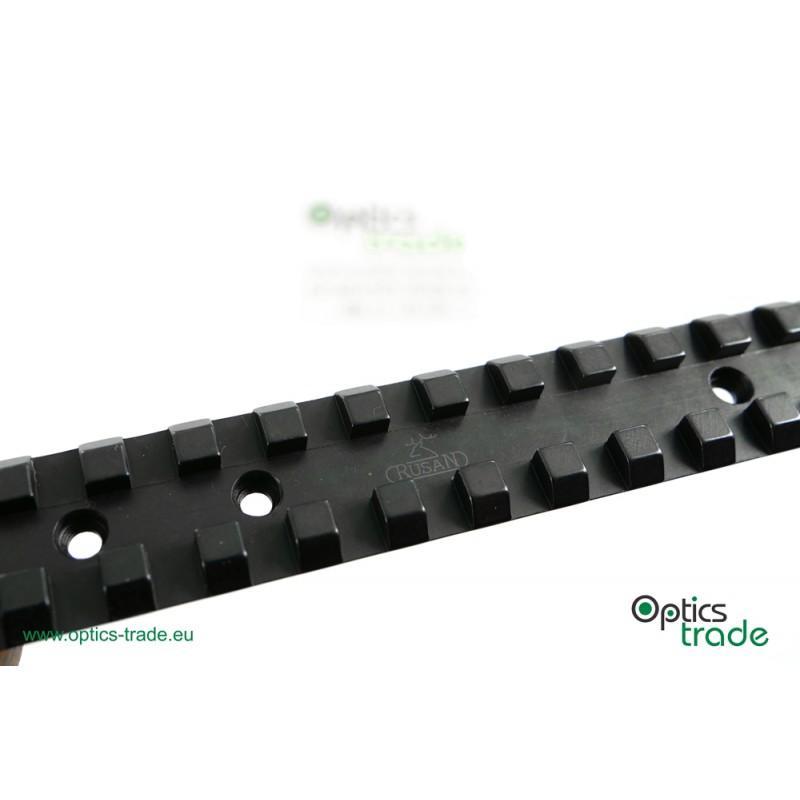

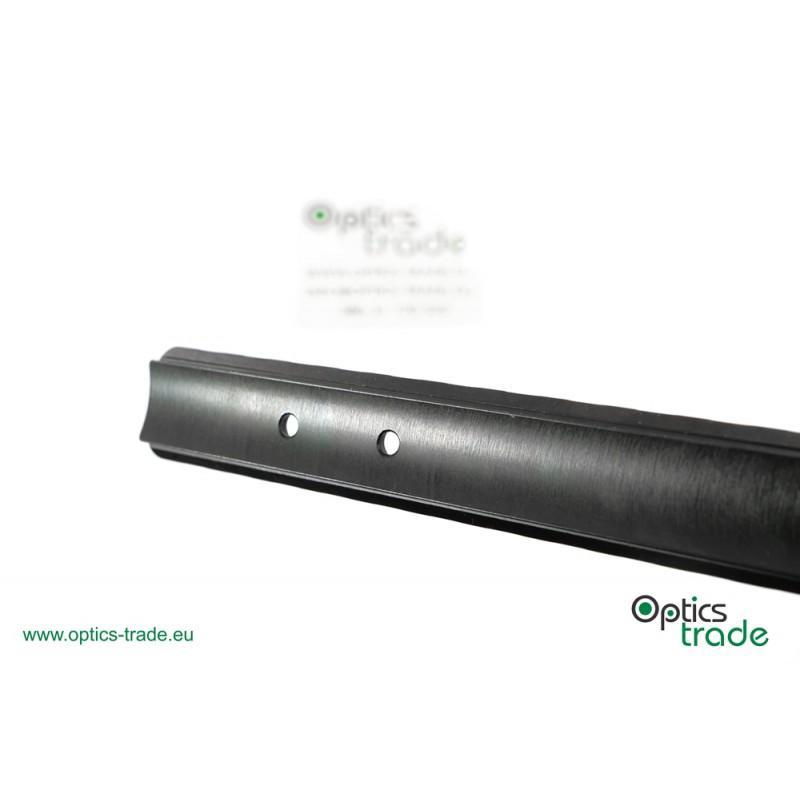

Rusan Picatinny rail – Remington 770 Detajli

Introduction

Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.

Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver’s slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.

Rusan, a company from Croatia, is one of the manufacturers of Picatinny rails. They make mounts exclusively from steel and provide buyers with a wide selection of Picatinny rails for various rifles. They are made from high quality deep blue finish steel. Picatinny Rails include screws with appropriate thread for the corresponding rifle. Rusan covers 10 years of warranty for all its products.

About the rifle

Remington Arms was founded in 1816 when Eliphalet Remington made a flintlock rifle with a firing mechanism. Remington is possibly the oldest gun maker in America that still produces its original product guns. They produce firearms, ammunition and other accessories. Remington model 700 and model 870 are among the best selling firearms of all time. The company is also known for the development of more cartridges than any other company in the world

Remington 770 is a bolt-action rifle, chambered for these calibers: .243 Win., .270 Win., 7mm-08 Rem., 7mm Rem. Mag., .30-06 Sprg., .308 Win and .300 Win. Mag. It is an updated version of Remington 710. Round capacity is either 4 + 1 or 3 + 1 (magnum). For mounting purposes, there are four holes drilled and tapped on the receiver, two at the front mounting surface and two at the rear mounting surface. The bolt is operated with a 60° lift. It locks into place with the help of three recoil lugs. The action is push-feed. The safety (operated with a lever) is located to the right rear of the bolt.

A: 18.5 mm
B: 62.5 mm
C: 18.5 mm
BHU: 0 mm
Fi: 6-48
R1: R18
R2: R18

Mounting instructions

Remove all the stains (grease, oil etc.) from the rifle’s receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.

Warranty

The product has a warranty period of 10 years.

Rusan Picatinny rail – Remington 770 specifikacije

Proizvajalec Rusan
Serija montaž Rusan Picatinny Bases
Poreklo Hrvaška
V proizvodnji od Ne
Garancija 10 let
SKU 010-20
Dolžina 139mm
Material Jeklo
Barva Črna
BH višina  7 mm
BH višina. 7mm
Nagib montaže  0 MOA
Tip letve Picatinny
Tip daljnogleda  Picatinny Rail
18.5 mm
62.5 mm
18.5 mm
