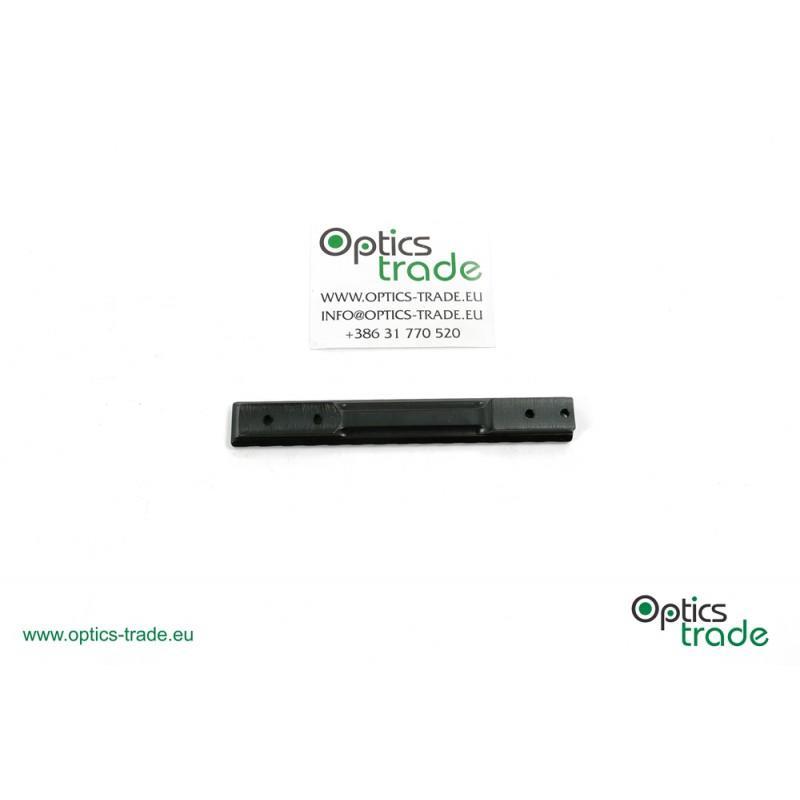

Rusan Picatinny rail – Remington 700 SA Detajli

Introduction
Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.
Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver’s slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.
Rusan, a company from Croatia, is one of the manufacturers of Picatinny rails. They make mounts exclusively from steel and provide buyers with a wide selection of Picatinny rails for various rifles. They are made from high quality deep blue finish steel. Picatinny Rails include screws with appropriate thread for the corresponding rifle. Rusan covers 10 years of warranty for all its products.
About the rifle
Remington Arms was founded in 1816 when Eliphalet Remington made a flintlock rifle with a firing mechanism. Remington is possibly the oldest gun maker in America that still produces its original product guns. They produce firearms, ammunition and other accessories. Remington model 700 and model 870 are among the best selling firearms of all time. The company is also known for the development of more cartridges than any other company in the world.

Remington 700 is a series of bolt-action rifles. It’s important to know that these rifles have been in production since 1962 and are still in production today. There are various models on the market but all are based on the same centerfire bolt action. They come with three, four, five or six round internal magazine which depends on the caliber used. Its action is designed with two forward dual-opposed lugs and uses a C-clip extractor. All models are equipped with externally adjustable triggers, hammer-forged barrels, and supercell recoil pads. The rifles weigh about 4 kg, and are available in barrels length 16,5”, 18,5”, 20”, 22”, 24” and 26”. There are four holes drilled and tapped for the purpose of mounting. There are many model 700 rifles on the market and they are made for various calibers. Short-action models are chambered for the following calibers: .17 Rem., .222 Rem., .223 Rem., .22-250 Rem., .220 Swift., .243 Win., .257 Roberts, .260 Rem., 7mm-08 Rem., .308 Win., .300 Rem. SA Ultra Mag. and 7mm Rem. SA Ultra Mag. If you are looking for a 20 MOA Picatinny rail for short-action models, click here.

SA stands for short action. If you are looking for a 20 MOA Picatinny rail for rifles Remington 700, 78 short-action, click here.

When a rifle is available in more than one action length, only two-piece mounts are interchangeable between these rifles (a two-piece mount made for rifles Remington 700, 78 short-action (SA) can also be mounted on rifles Remington 700, 78 long-action (LA)). One-piece mounts will only fit a rifle with a specific action length (a one-piece mount made for rifles Remington 700, 78 short-action (SA) will not fit rifles Remington 700, 78 long-action (LA)).

Remington 700, 78 SA (short-action) has a similar action as rifles Mauser M96, Mauser M97, Sauer 100, Sauer 101, Roessler Titan 16, Bergara B14 LA, Haenel Jäger 10 and Sabatti Rover LA. The radiuses of the mounting surfaces are the same but there is a difference in B distance (see the picture below). This is why two-piece mounts made for Remington 700 SA (short action) will fit rifles Mauser M96, Mauser M97, Sauer 100, Sauer 101, Roessler Titan 16, Bergara B14 LA, Haenel Jäger 10 and Sabatti Rover LA while one-piece mounts made for Remington 700, 78 SA (short-action) will not fit those rifles.

A: 21.9 mm
B: 92.3 mm
C: 15.3 mm
BHU: 2.9 mm
Fi: 6-48
R1: R17
R2: R51
Mounting instructions
Remove all the stains (grease, oil etc.) from the rifle’s receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.
Warranty
The product has a warranty period of 10 years.
Rusan Picatinny rail – Remington 700 SA specifikacije

Proizvajalec
Rusan

Serija montaž
Rusan Picatinny Bases

Poreklo
Hrvaška

V proizvodnji od
Ne

Garancija
10 let

SKU
010-15-SA

Dolžina
149mm

Material
Jeklo

Barva
Črna

BH višina
8 mm

BH višina.
8mm

Nagib montaže
0 MOA

Tip letve
Picatinny

Tip daljnogleda
Picatinny Rail


21.84 mm


92.20 mm


21.84 mm
