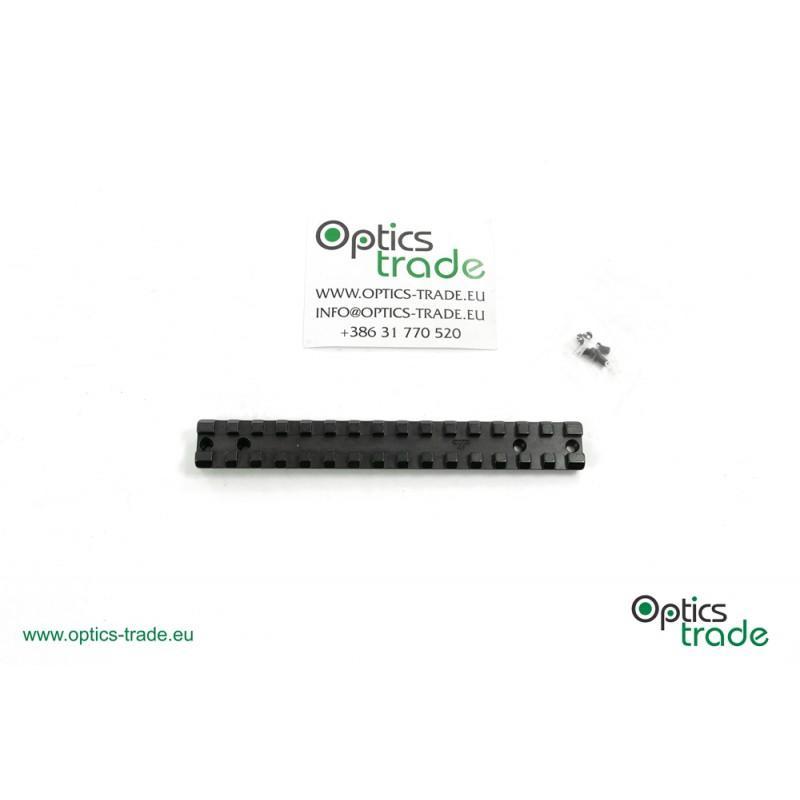

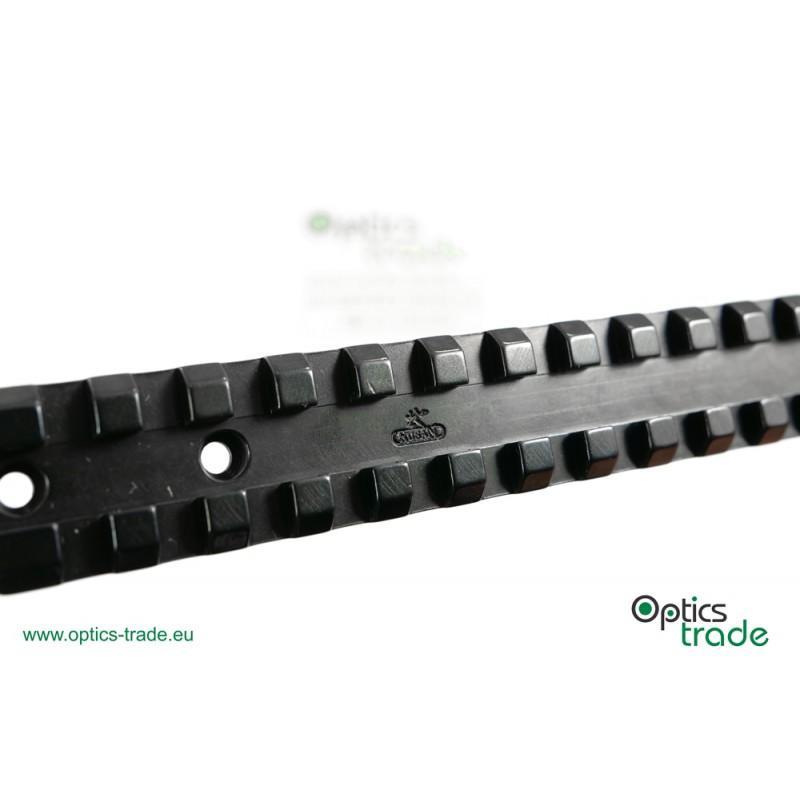

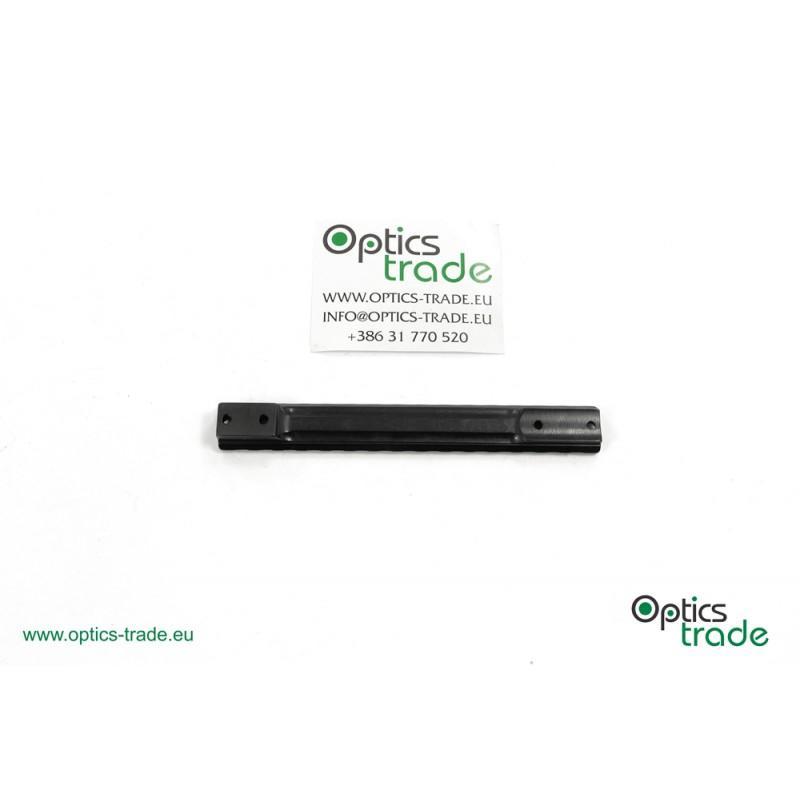

Rusan Picatinny rail – Howa 1500 LA Detajli

Introduction
Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.
Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver’s slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.
Rusan, a company from Croatia, is one of the manufacturers of Picatinny rails. They make mounts exclusively from steel and provide buyers with a wide selection of Picatinny rails for various rifles. They are made from high quality deep blue finish steel. Picatinny Rails include screws with appropriate thread for the corresponding rifle. Rusan covers 10 years of warranty for all its products.
About the rifle
Howa is a machinery manufacturer with headquarters in Japan. It was founded in 1907. They produce firearms, industrial tools, construction vehicles, windows, and doors. Throughout the years, Howa has also produced components for other renowned firearms manufacturing companies such as Mossberg, Weatherby and Smith & Wesson.

Howa 1500 is a bolt-action centerfire rifle available in both short- and long-action versions, made in Japan. The long-action model (LA) is chambered for 6x5x55 SW, .25-06 Rem., .270 Win. and .30-06 Sprg. Magnum long-action models are chambered for .300 Win. Mag., .338 Win. Mag., 7mm Rem. Mag. and .375 Ruger. Standard version holds 5 + 1 rounds but 5- and 10-round removable box magazines are also available. Magnum version holds 3 + 1 rounds. Its safety has three positions. As regards stock and finish options, there are many versions on the market. The barrel is free-floating to ensure great accuracy. The action is push-feed. Weatherby 300, Vanguard, Europa, Weatherby rifles equipped with Mark V action and Howa 1500 LA have actions of same dimensions, which is why they share the same mounts.

Rifles Weatherby 300, Vanguard, Europa, Weatherby rifles equipped with Mark V action and Howa 1500 LA have actions of the same dimensions, which is why they share the same mounts.

Rifles Weatherby 300, Vanguard, Europa, those equipped with Mark V action and Howa 1500 LA have a similar action as Howa 1500 SA. The radiuses of the mounting surfaces are the same but there is a difference in B distance (see the picture below). This is why two-piece mounts made for Weatherby 300, Vanguard, Europa, those equipped with Mark V action and Howa 1500 LA will fit Howa 1500 SA while one-piece mounts made for those rifles will not fit Howa 1500 SA.

A: 22 mm
B: 113.8 mm
C: 15.3 mm
BHU: 3.2 mm
Fi: 6-48
R1: R17
R2: R60
Mounting instructions
Remove all the stains (grease, oil etc.) from the rifle’s receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.
Warranty
The product has a warranty period of 10 years.
Rusan Picatinny rail – Howa 1500 LA specifikacije

Proizvajalec
Rusan

Serija montaž
Rusan Picatinny Bases

Poreklo
Hrvaška

V proizvodnji od
Ne

Garancija
10 let

SKU
010-19-LA

Dolžina
159mm

Material
Jeklo

Barva
Anodizirana črna

BH višina
9 mm

BH višina.
9mm

Nagib montaže
0 MOA

Tip letve
Picatinny

Tip daljnogleda
Picatinny Rail


22 mm


113.8 mm


15.3 mm
